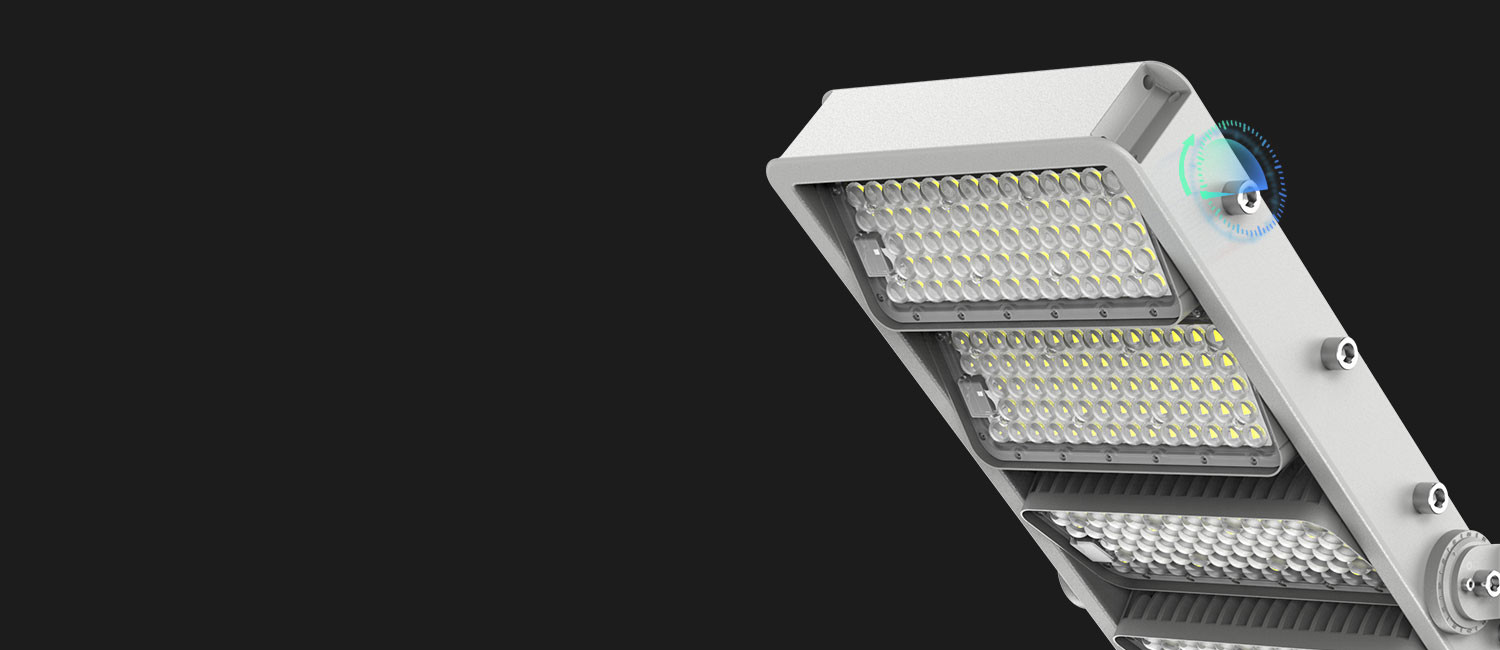

LED High Mast Light Outdoor Stadium Area Light 175lm/W Waterproof Billboard
SPECIFICATIONS
Patented c series LED sports lights have an elegant appearance with die-cast modules, IK rating is IK08 Vertically and horizontally rotatable heat sink design makes every module flexibly targeting to specified point to get much better light uniformity on sports field. Upward light ratio=0 for light fixture with symmetrical beams and spill covers Upward light ratio=0 for light fixture with asymmetrical beams Optional long distance wireless control system and DMX control system
| Warranty | 5 Yrs Warranty |
| Wireless Control | Available |
| IP Rate | IP66 |
| Beam Angle | 20°, 40°, 60°, asymmetric A60, A60W, A70, A70W |
| Bracket | Stainless steel |
| Driver | INVENTRONICS, MEANWELL, SOSEN |
| IK Rate | IK09 |
| Windload Test | 17 class windload(56.1-61.2m/s, 240kg/square meter) |
| L70 Hour | ＞100.000h |
| Optional Accessories | SPD, Zigbee Gateway, Zigbee Controller, Zigbee Wall Switch |
| MODEL | SG-JR-150W | SG-JR-300W | SG-JR-450W | SG-JR-600W | SG-JR-750W | SG-JR-900W | SG-JR-1200W | SG-JR-1500W |
| WATTAGE Symmetrica | 150W | 300W | 450W | 600W | 750W | 900W | 1200W | 1500W |
| MODEL QTY | 1 | 2 | 3 | 4 | 5 | 6 | 8 | 10 |
| LUMEN EFFICIENCY Symmetric | 170LM/W | 170LM/W | 170LM/W | 170LM/W | 170LM/W | 170LM/W | 170LM/W | 170LM/W |
| LUMEN OUTPUT | 25,500LM | 51,000LM | 76,500LM | 102,000LM | 127,500LM | 153,000LM | 204,000LM | 255,000LM |
Vertically Adjustable Modular Design
- Each module is rotatable vertically 15 °
therefore a more precise and uniform lighting effect will be delivered on
all different lighting area. Most uniformity rate we get with our Jaguar
series lamps are more than 0.7
Smaller Size and Lighter Weight
Each module is 150w but with only 286*124*74.5MM
and 1174g . best option for retrofits,
new installations, and maintanence.
Protection from Bird Harms and Rugged Weather
No exposed wires at all for the whole lighting fixture and together
with the smooth surface treatment can protect the lamps well from
the bird harms or any possible dirties, leaves caused by rugged weather,
ensures the durability of the heat dissipation performance.
